WATERDRONE CATALOGUE

Apache 6

CHCNAV · PR China

The APACHE 6 is an autonomous USV optimized for high-resolution 3D bathymetric surveys, underwater object localization, and offshore construction. Featuring a dual propeller system, it ensures stable automatic cruising and high operational efficiency. With the ability to operate in android remote control, the APACHE 6 provides flexibility and accuracy for complex marine survey projects

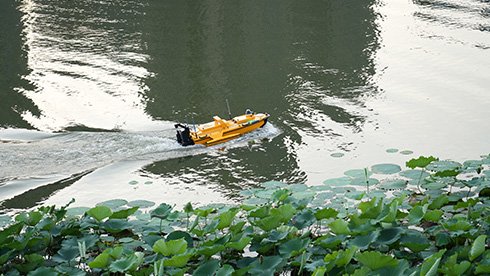

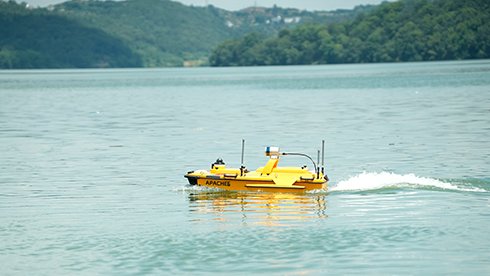

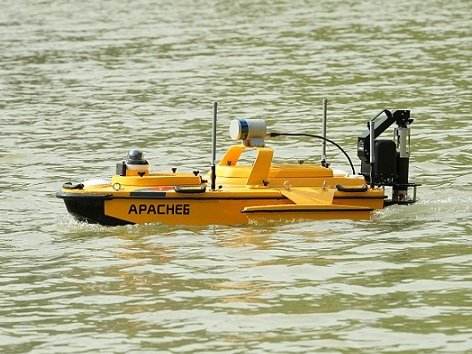

Product Photos

Main Specifications

CategoryResearch

Use CasesDredging Operations, Port Surveys, Bridge and Dam Inspections, River and Lake Topography

Area of ApplicationInland Waterways, Lakes, Costal

Length (cm)1670

Breadth (cm)1000

Height (cm)510

Draft (cm)7.5

Weight (kg)15

Payload (kg)60

Operating SpeedSpeed max. : 6 m/s max

EnduranceThe APACHE 6 utilizes intelligent rotating propeller technology to adjust the direction of water flow. It allows the USV to achieve a turning radius of just 2 meters, making it ideal for operation in narrow waterways. It also enhances the efficiency of multibeam echo sounder bathymetric surveys

Power SourceBattery

Additional Specifications

Propulsion System

Electric

Integration

The Android remote control provides real-time access to vessel status and survey data, eliminating the need for a computer. Its intuitive interface ensures efficient survey operations, while a multi-link communication enables long-distance data transmission for seamless control of the APACHE 6.

Communication

Remote : 2,4 GHz, ≤ 1 km
Cellular : 4G LTE

Operating Environment

The APACHE 6 tri-hull design and detachable side floats offer a stable position and greater adaptability to ensure optimum stability even in fast currents.

Additional Information

Example product for CSV import testing.
